6594 Modulo B

Product Images

This is the description of the lever

Available Finishes

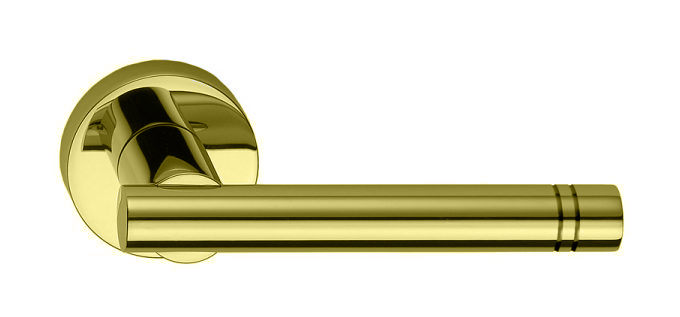

605 Polished Brass

606 Satin Brass

606M Satin Brass (Matte)

609 Antique Brass

609M Antique Brass (Matte)

613 Dark Bronze

618 Polished Nickel

619 Satin Nickel

620 Antique Nickel

620M Antique Nickel (Matte)

622 Matte Black Powder Coat

625 Polished Chrome

626 Satin Chrome

629 Polished Stainless Steel

630 Satin Stainless Steel

BBN Brushed Blackened Nickel

BREZO Brezo Bronze

IXAPB Absolute Polished Black

IXATC Anthracite Charcoal PVD

IXBB Brushed Bronze PVD

IXBLK Black PVD

IXBSB Brushed Satin Black PVD

IXCPN Satin Champagne PVD

IXPCPN Polished Champagne

IXPRC Polished Red Copper PVD

IXSRC Satin Red Copper PVD

Rose and Plate Options

Standard rose system

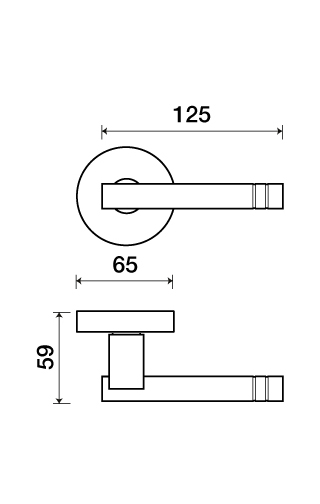

Lever with 65 mm square rose for standard tubular 2-1/8” door prep

Small rose system

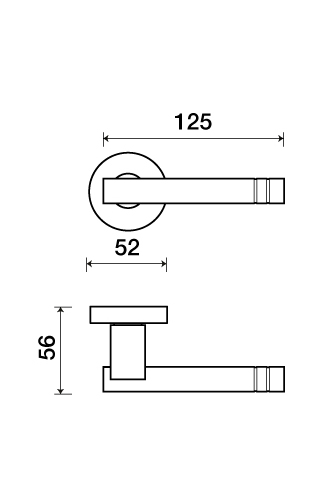

Lever with 52 mm rose for mortise and custom tubular door prep

Escutcheon plate system

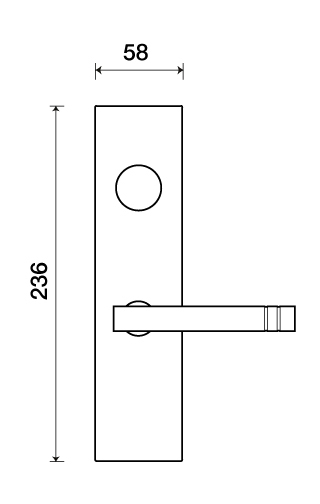

Lever with plate for mortise functions

How to Specify

How to Specify the M500 Series

745 Modulo L lever on a small rose, in polished brass, privacy lock function with deadbolt and coin turn outside with ADA thumbturn and emergency release with indicator window options

Rose/Plate

Modulo L 745, SM (52 mm), SMT (58 mm), SMO (60 mm), SMQ (54 mm), SMQR (54 mm), SMQE (54 mm), SME (54 mm), SMC (54 mm)

Function

M501, M504, M505, M507, M507EU, M507EL, M513, M515, M519, M520, M522, M523, M526, M573

Turnknob (if required)

M61, H41, R71, M61-Q, RM61-Q

Option

EMT, EMTI, RX, LX

Finish

Per project specification

How to Specify the T600 Series

Sweep lever on a 1912Q standard square rose, passage function, in polished chrome finish

Rose/Plate

1912 (65 mm), 1903 (65 mm), 1905 (65 mm), 1906 (65 mm), 1912Q (65 mm), 1912QE (65 mm), 1912-76 (76 mm)

Function

PA (Passage), PY (Privacy), FD (Full Dummy), SD (Single Dummy), CPACP (Communicating Passage with Cover Plate), CPABP (Communicating Passage Blind Prep)

Latch

SC Commercial Grade, HL Standard Duty, RL Residential Grade

Strike

TSTK1 Standard T-Strike, TSTK2, TSTK3, TSTK4

Misc.

2-1/4” thick door

Finish

Per project specification

How to Specify the T700 Series

Kuma lever on a small rose, passage function, in brushed satin chrome finish

Rose/Plate

1912 (65 mm), 1903 (65 mm), 1905 (65 mm), 1906 (65 mm), 1912Q (65 mm), 1912QE (65 mm), 1912-76 (76 mm)

Function

PA (Passage), PY (Privacy), FD (Full Dummy), SD (Single Dummy), CPACP (Communicating Passage with Cover Plate), CPABP (Communicating Passage Blind Prep)

Latch

SC Commercial Grade, HL Standard Duty, RL Residential Grade

Strike

TSTK1 Standard T-Strike, TSTK2, TSTK3, TSTK4

Misc.

2-1/4” thick door

Finish

Per project specification

Documents

6594 Modulo B Lever Specification Sheet

PDF

Download

6594 Modulo B Lever Specification Sheet

PDF

Download
